当前位置：网站首页 » 仓储库存 » 广东佛山乐从C型钢生产厂家,C型钢檩条,C型槽价格,可定做Q345B材质高镀锌层高强度钢

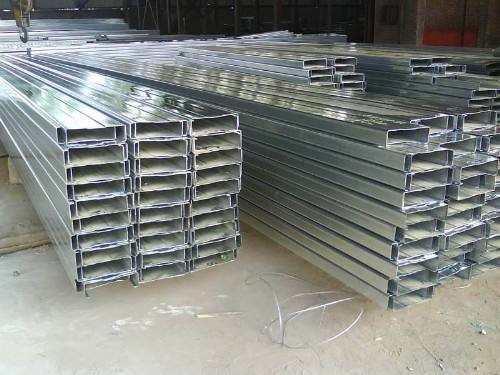

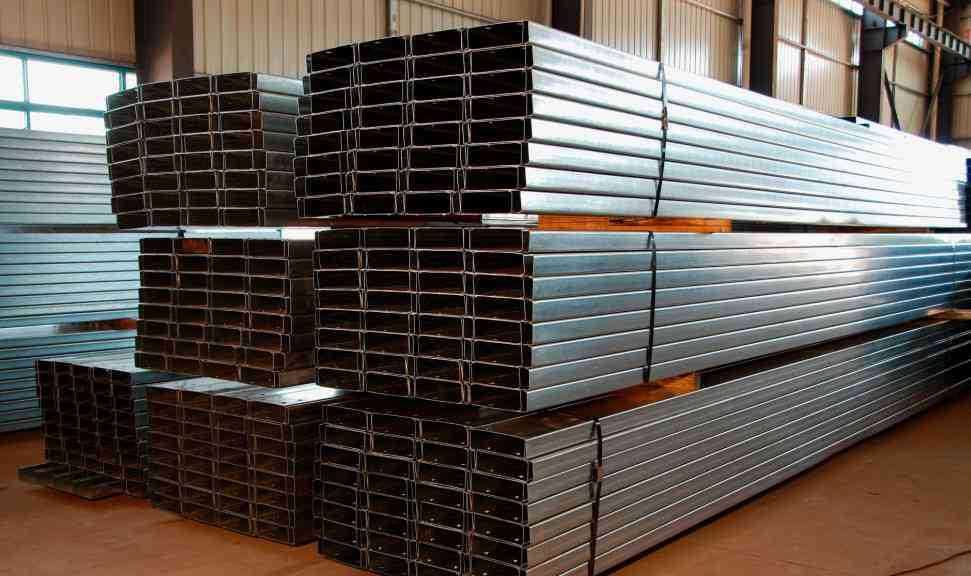

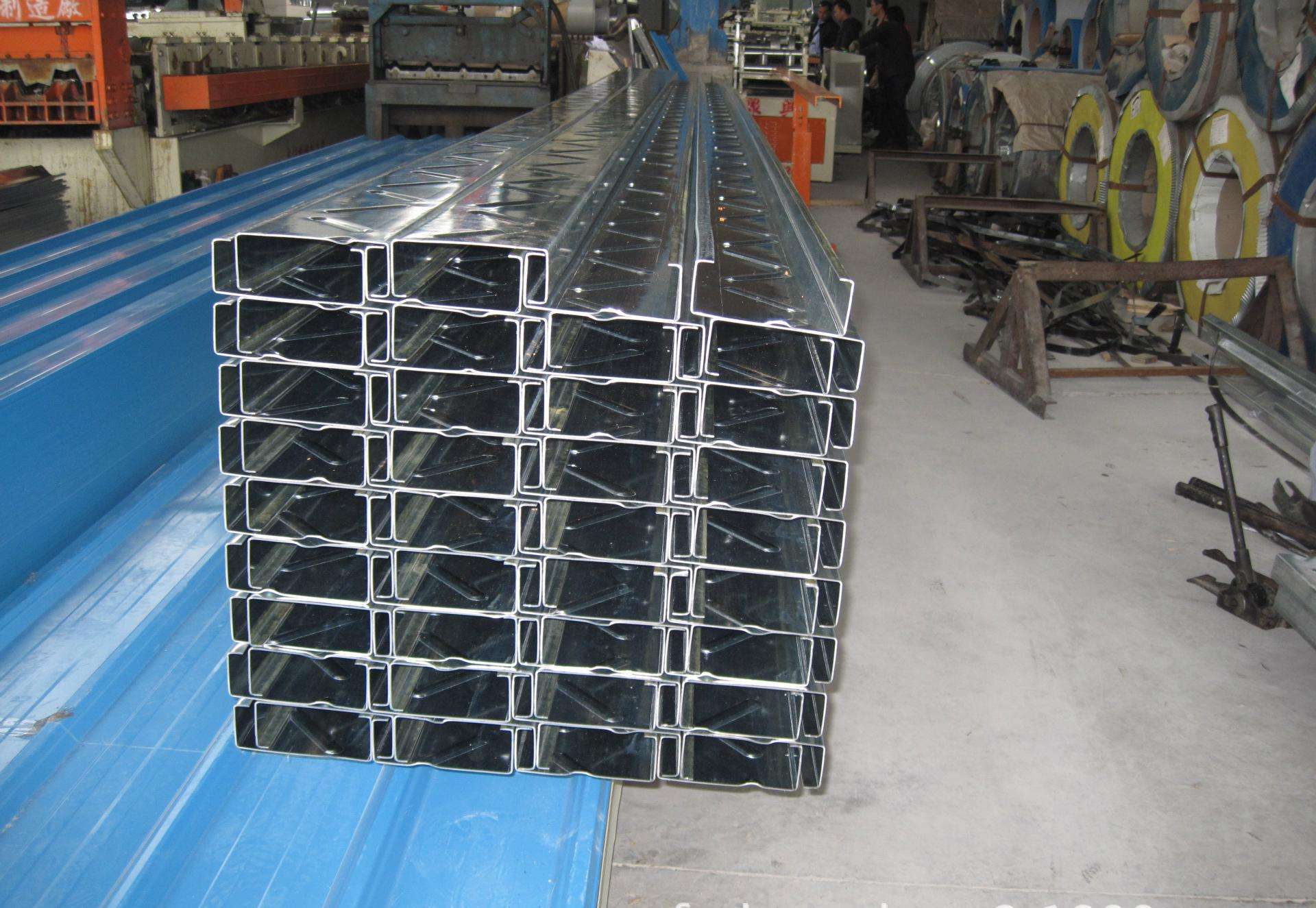

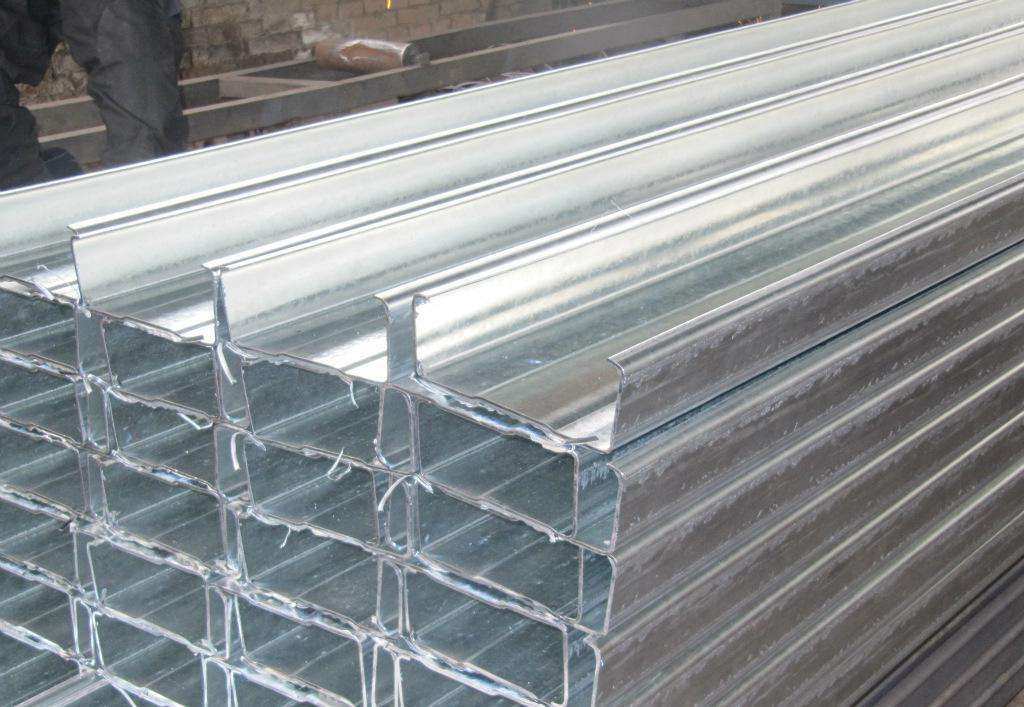

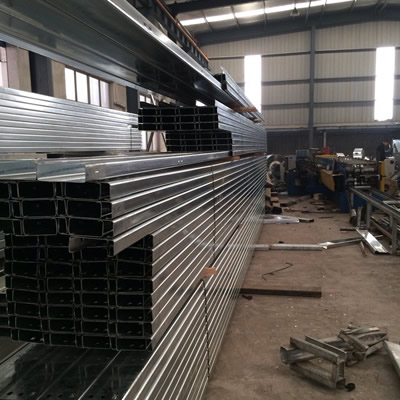

广东佛山乐从C型钢生产厂家,C型钢檩条,C型槽价格,可定做Q345B材质高镀锌层高强度钢
C型钢规格型号及技术参数
尺寸 | 面积 | 重量 | 重心 | 弯心 | 断面参数 | ||||||||||
（mm） | CM2 | Kg/m | CM | CM | CM4 | CM3 | CM | CM4 | CM | CM3 | CM3 | ||||
H | B | C | t | A | m | ex | ey | e0 | Ix | Wx | rx | ly | ry | Wymax | Wymin |
80 | 45 | 10 | 2.00 | 3.57 | 2.80 | 1.71 | 3.75 | 3.93 | 31.98 | 8.53 | 2.99 | 10.08 | 1.68 | 5.91 | 3.61 |
80 | 45 | 10 | 2.30 | 4.05 | 3.18 | 1.70 | 3.75 | 3.89 | 35.78 | 9.54 | 2.97 | 11.18 | 1.66 | 6.56 | 4.00 |
80 | 45 | 10 | 2.50 | 4.36 | 3.42 | 1.70 | 3.75 | 3.86 | 38.18 | 10.18 | 2.96 | 11.85 | 1.65 | 6.97 | 4.23 |
80 | 45 | 10 | 2.75 | 4.73 | 3.72 | 1.70 | 3.75 | 3.83 | 41.03 | 10.94 | 2.94 | 12.63 | 1.63 | 7.44 | 4.51 |
80 | 45 | 10 | 3.00 3.00 | 5.10 | 4.01 | 1.69 | 3.75 | 3.80 | 43.70 | 11.65 | 2.93 | 13.33 | 1.62 | 7.87 | 4.75 |
100 | 50 | 15-20 | 2.00 | 4.47 | 3.51 | 1.86 | 5.00 | 4.38 | 69.62 | 13.92 | 3.95 | 16.44 | 1.92 | 8.86 | 5.23 |
100 | 50 | 15-20 | 2.30 | 5.08 | 3.99 | 1.85 | 5.00 | 4.34 | 78.35 | 15.67 | 3.93 | 18.35 | 1.90 | 9.91 | 5.83 |
100 | 50 | 15-20 | 2.50 | 5.48 | 4.30 | 1.85 | 5.00 | 4.32 | 83.92 | 16.78 | 3.91 | 19.55 | 1.89 | 10.57 | 6.21 |
100 | 50 | 15-20 | 2.75 | 5.97 | 4.69 | 1.85 | 5.00 | 4.28 | 90.63 | 18.13 | 3.90 | 20.96 | 1.87 | 11.34 | 6.65 |
100 | 50 | 15-20 | 3.00 | 6.45 | 5.07 | 1.84 | 5.00 | 4.25 | 97.03 | 19.41 | 3.88 | 22.27 | 1.86 | 12.07 | 7.06 |
120 | 50 | 15-20 | 2.00 | 4.87 | 3.82 | 1.71 | 6.00 | 4.11 | 106.94 | 17.82 | 4.69 | 17.57 | 1.90 | 10.27 | 5.34 |
120 | 50 | 15-20 | 2.30 | 5.54 | 4.35 | 1.71 | 6.00 | 4.08 | 120.58 | 20.10 | 4.66 | 19.62 | 1.88 | 11.49 | 5.96 |
120 | 50 | 15-20 | 2.50 | 5.98 | 4.70 | 1.71 | 6.00 | 4.05 | 129.33 | 21.55 | 4.65 | 20.91 | 1.87 | 12.26 | 6.35 |
120 | 50 | 15-20 | 2.75 | 6.52 | 5.12 | 1.70 | 6.00 | 4.02 | 139.89 | 23.31 | 4.63 | 22.43 | 1.85 | 13.17 | 6.80 |
120 | 50 | 15-20 | 3.00 | 7.05 | 5.54 | 1.70 | 6.00 | 3.99 | 150.02 | 25.00 | 4.61 | 23.85 | 1.84 | 14.02 | 7.23 |
140 | 60 | 15-20 | 2.00 | 5.67 | 4.45 | 1.98 | 7.00 | 4.77 | 173.04 | 24.72 | 5.53 | 28.65 | 2.25 | 14.49 | 7.12 |
140 | 60 | 15-20 | 2.30 | 6.46 | 5.07 | 1.97 | 7.00 | 4.73 | 195.70 | 27.96 | 5.50 | 32.11 | 2.23 | 16.28 | 7.97 |
140 | 60 | 15-20 | 2.50 | 6.98 | 5.48 | 1.97 | 7.00 | 4.71 | 210.33 | 30.05 | 5.49 | 34.31 | 2.22 | 17.41 | 8.51 |
140 | 60 | 15-20 | 2.75 | 7.62 | 5.98 | 1.97 | 7.00 | 4.68 | 228.10 | 30.59 | 5.47 | 36.92 | 2.20 | 18.77 | 9.16 |
140 | 60 | 15-20 | 3.00 | 8.25 | 6.48 | 1.96 | 7.00 | 4.64 | 245.28 | 35.04 | 5.45 | 39.40 | 2.18 | 20.06 | 9.76 |
160 | 60 | 15-20 | 2.00 | 6.07 | 4.76 | 1.85 | 8.00 | 4.54 | 236.56 | 29.57 | 6.24 | 29.96 | 2.22 | 16.17 | 7.22 |
160 | 60 | 15-20 | 2.30 | 6.92 | 5.43 | 1.85 | 8.00 | 4.50 | 267.81 | 33.48 | 6.22 | 33.60 | 2.20 | 18.16 | 8.09 |
160 | 60 | 15-20 | 2.50 | 7.48 | 5.87 | 1.85 | 8.00 | 4.48 | 288.05 | 36.01 | 6.21 | 35.90 | 2.19 | 19.43 | 8.64 |
160 | 60 | 15-20 | 2.75 | 8.17 | 6.42 | 1.84 | 8.00 | 4.45 | 312.66 | 39.08 | 6.19 | 38.64 | 2.17 | 20.95 | 9.30 |
160 | 60 | 15-20 | 3.00 | 8.85 | 6.95 | 1.84 | 8.00 | 4.41 | 336.52 | 42.07 | 6.17 | 41.24 | 2.16 | 22.40 | 9.92 |
160 | 70 | 15-20 | 2.00 | 6.47 | 5.08 | 2.24 | 8.00 | 5.42 | 261.52 | 32.69 | 6.36 | 43.42 | 2.59 | 19.40 | 9.12 |
160 | 70 | 15-20 | 2.30 | 7.38 | 5.79 | 2.23 | 8.00 | 5.38 | 296.41 | 37.05 | 6.34 | 48.82 | 2.57 | 21.85 | 10.24 |
160 | 70 | 15-20 | 2.50 | 7.98 | 6.27 | 2.23 | 8.00 | 5.35 | 319.05 | 39.88 | 6.32 | 52.26 | 2.56 | 23.42 | 10.96 |
160 | 70 | 15-20 | 2.75 | 8.72 | 6.85 | 2.23 | 8.00 | 5.32 | 346.66 | 43.33 | 6.30 | 56.38 | 2.54 | 25.31 | 11.81 |
160 | 70 | 15-20 | 3.00 | 9.45 | 7.42 | 2.22 | 8.00 | 5.29 | 373.50 | 46.69 | 6.29 | 60.32 | 2.53 | 27.12 | 12.63 |
180 | 70 | 15-20 | 2.00 | 6.87 | 5.39 | 2.11 | 9.00 | 5.19 | 343.90 | 38.21 | 7.08 | 45.14 | 2.56 | 21.35 | 9.24 |
180 | 70 | 15-20 | 2.30 | 7.84 | 6.16 | 2.11 | 9.00 | 5.15 | 390.09 | 43.34 | 7.05 | 50.76 | 2.54 | 24.06 | 10.38 |
180 | 70 | 15-20 | 2.50 | 8.48 | 6.66 | 2.11 | 9.00 | 5.13 | 420.11 | 46.68 | 7.04 | 54.34 | 2.53 | 25.79 | 11.11 |
180 | 70 | 15-20 | 2.75 | 9.27 | 7.28 | 2.10 | 9.00 | 5.09 | 456.77 | 50.75 | 7.02 | 58.64 | 2.51 | 27.87 | 11.98 |
180 | 70 | 15-20 | 3.00 | 10.05 | 7.89 | 2.10 | 9.00 | 5.06 | 492.47 | 54.72 | 7.00 | 62.74 | 2.50 | 29.87 | 12.81 |
200 | 75 | 15-20 | 2.00 | 7.47 | 5.86 | 2.19 | 10.00 | 5.40 | 459.63 | 45.96 | 7.85 | 55.19 | 2.72 | 25.25 | 10.39 |
200 | 75 | 15-20 | 2.30 | 8.53 | 6.70 | 2.18 | 10.00 | 5.37 | 521.93 | 52.19 | 7.82 | 61.13 | 2.70 | 28.48 | 11.68 |
200 | 75 | 15-20 | 2.50 | 9.23 | 7.25 | 2.18 | 10.00 | 5.34 | 562.51 | 56.25 | 7.81 | 66.58 | 2.69 | 30.55 | 12.51 |
200 | 75 | 15-20 | 2.75 | 10.10 | 7.93 | 2.18 | 10.00 | 5.31 | 612.18 | 61.22 | 7.79 | 71.59 | 2.67 | 33.05 | 13.51 |
200 | 75 | 15-20 | 3.00 | 10.95 | 8.60 | 2.17 | 10.00 | 5.28 | 660.66 | 66.07 | 7.77 | 77.03 | 2.65 | 35.46 | 14.46 |
250 | 75 | 15-20 | 2.00 | 8.47 | 6.65 | 1.94 | 12.50 | 4.93 | 776.45 | 62.12 | 9.58 | 59.02 | 2.64 | 30.43 | 10.62 |
250 | 75 | 15-20 | 2.30 | 9.68 | 7.60 | 1.94 | 12.50 | 4.90 | 882.83 | 70.63 | 9.55 | 66.46 | 2.62 | 34.32 | 11.95 |
250 | 75 | 15-20 | 2.50 | 10.48 | 8.23 | 1.93 | 12.50 | 4.87 | 952.29 | 76.18 | 9.53 | 71.22 | 2.61 | 36.82 | 12.80 |
250 | 75 | 15-20 | 2.75 | 11.47 | 9.01 | 1.93 | 12.50 | 4.84 | 1037.50 | 83.00 | 9.51 | 76.95 | 2.59 | 39.84 | 13.82 |
250 | 75 | 15-20 | 3.00 | 12.45 | 9.78 | 1.93 | 12.50 | 4.81 | 1120.90 | 89.67 | 9.49 | 82.43 | 2.57 | 42.74 | 14.80 |
300 | 80 | 15-20 | 2.5 | 12.5 | 9.61 | 1.89 | 15.00 | 4.462 | 1588.59 | 105.9 | 11.38 | 93.48 | 2.76 | 48.08 | 15.30 |
300 | 80 | 15-20 | 3 | 14.64 | 11.49 | 1.89 | 15.00 | 4.54 | 1889.75 | 125.98 | 11.36 | 109.92 | 2.74 | 56.00 | 18.16 |
300 | 100 | 15-20 | 2.75 | 14.54 | 11.41 | 1.90 | 15.00 | 6.00 | 1982.84 | 132.18 | 11.67 | 176.71 | 3.48 | 67.70 | 23.91 |
300 | 100 | 15-20 | 3 | 15.84 | 12.43 | 1.90 | 15.00 | 6.10 | 2154.38 | 143.62 | 11.66 | 191.18 | 3.47 | 73.20 | 25.87 |
二、几何尺寸：
C型檩条断面尺寸 | |||||||
型号 | 断面尺寸（mm） | h | 备注 | ||||
H | B | B | C | t | |||
C80 | 80 | 40 | 40 | 15-20 | 2.0-3.0 |

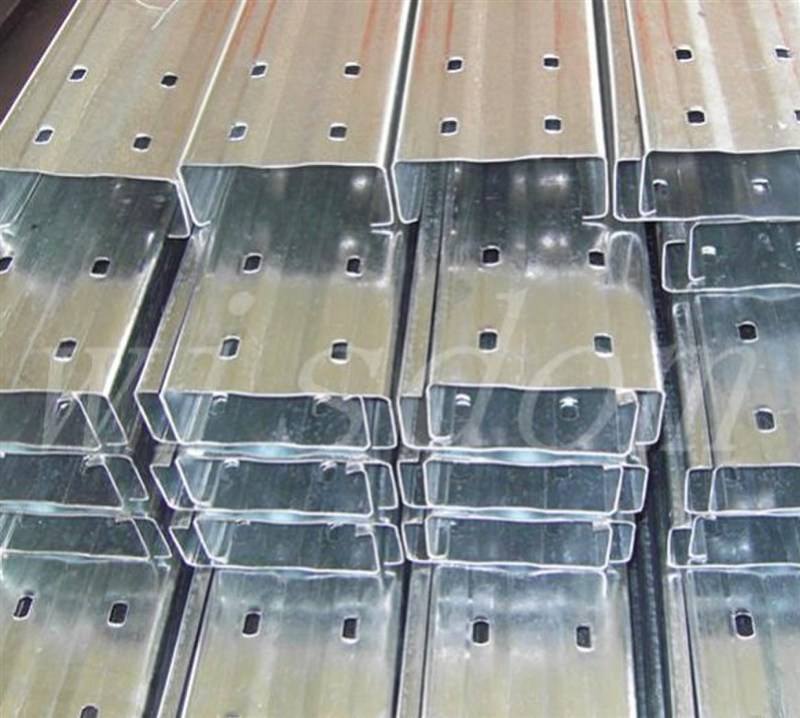

| 以上规格C型钢材质均采用Q195-Q235 （可冲中孔） |
C100 | 100 | 50 | 50 | 15-20 | 2.0-3.0 |
| |
C120 | 120 | 50 | 50 | 15-20 | 2.0-3.0 | 孔距可调 | |
C140 | 140 | 50 | 50 | 15-20 | 2.0-3.0 | 孔距可调 | |
C160 | 160 | 50 | 50 | 15-20 | 2.0-3.0 | 孔距可调 | |
C160 | 160 | 60 | 60 | 15-20 | 2.0-3.0 | 孔距可调 | |
C180 | 180 | 60 | 60 | 15-20 | 2.0-3.0 | 孔距可调 | |
C200 | 200 | 60 | 60 | 15-20 | 2.0-3.0 | 孔距可调 | |
C220 | 220 | 60 | 60 | 15-20 | 2.0-3.0 | 孔距可调 | |
C220 | 220 | 70 | 70 | 15-20 | 2.0-3.0 | 孔距可调 | |
C250 | 250 | 70 | 70 | 15-20 | 2.0-3.0 | 孔距可调 | |
C250 | 250 | 80 | 80 | 15-20 | 2.0-3.0 | 孔距可调 | |
C300 | 300 | 80 | 80 | 15-20 | 2.0-3.0 | 孔距可调 | |
板材厚度明细表
板材名称 | 厚度 | 板材名称 | 厚度 | 板材名称 | 厚度 | 板材名称 | 厚度 |
镀锌板 | 0.17 | 国产 （彩涂板） | 0.23 | 国产 （彩涂板） | 0.35 | 铝板 | 0.3 |
0.2 | 0.25 | 0.4 | 0.35 | ||||
0.23 | 0.28 | 0.45 | 0.4 | ||||
0.25 | 0.326 | 0.5 | 0.45 | ||||
0.27 | 0.376 | 0.6 | 0.5 | ||||
0.3 | 0.426 | 0.7 | 0.6 | ||||
0.35 | 0.476 | 0.8 | 0.7 | ||||
0.4 | 0.5 | 1.0 | 0.8 | ||||
0.45 | 0.526 | 1.2 | 0.9 | ||||
0.47 | 0.6 | 空白 | 1.0 | ||||
0.5 | 0.7 | 1.5 | |||||
0.6 | 0.8 | 2.0 | |||||
0.65 | 进口 （彩涂板） | 0.286 | 2.5 | ||||
0.7 | 0.326 | 3.0 | |||||
0.75 | 0.376 | 空白 | |||||
0.8 | 0.426 | ||||||
0.85 | 0.476 | ||||||
0.9 | 0.526 | ||||||
1.0 | 0.576 | ||||||
1.1 |
| ||||||
1,槽80x40x15x2.0,80,40,15,2,14.52,33.6,347,341600,77900,462,112900000
2,槽100x50x15x2.5,100,50,15,2.5,17.06,39.4,523,813400,171900,1090,352800000
3,槽120x50x20x2.5,120,50,20,2.5,17.06,40.3,598,1294000,209600,1246,660900000
4,槽120x60x20x3.0,120,60,20,3,21.06,48.7,765,1706800,373600,2296,1153200000
5,槽140x60x20x3.0,140,60,20,3,19.64,46.1,825,2454200,394900,2476,1589800000
6,槽150x50x20x1.6,150,50,20,1.6,15.24,27.2,422,1362930,141870,360,663830000
7,槽150x50x20x2.0,150,50,20,2,15.24,27.2,528,1703660,177330,700,629790000
8,槽150x50x20x2.5,150,50,20,2.5,15.24,27.2,660,2129580,221660,1380,1037230000
9,槽150x50x20x3.0,150,50,20,3,15.24,27.2,792,2555490,266000,2380,1244530000
10,槽150x60x20x1.6,150,60,20,1.6,19,45,451,1514130,214620,390,995870000
11,槽150x60x20x2.0,150,60,20,2,19,45,564,1892660,268520,750,1244840000
12,槽150x60x20x2.5,150,60,20,2.5,19,45,705,2365830,335650,1470,1556050000
13,槽150x60x20x3.0,150,60,20,3,19,45,846,2838990,402780,2540,1867260000
14,槽160x60x20x2.0,160,60,20,2,18.41,44,582,2195200,274190,780,1417250000
15,槽160x60x20x2.5,160,60,20,2.5,18.41,44,728,2744000,342730,1520,1771660000
16,槽160x60x20x3.0,160,60,20,2.5,18.41,44,874,3292800,411280,2620,2125880000
17,槽160x70x20x3.0,160,70,20,3,22.24,52.5,742,3736400,604200,2836,3070500000
18,槽180x60x20x2.0,160,60,20,2,17.33,42.1,619,2861760,284520,830,1804350000
19,槽180x60x20x2.5,160,60,20,2.5,17.33,42.1,774,3602200,355650,1610,2255440000
20,槽180x60x20x3.0,160,60,20,3,17.33,42.1,926,4322640,426780,2790,2706520000
21,槽180x70x20x2.0,180,70,20,2,21.1,50,687,3439300,451800,870,2554750000
22,槽180x70x20x2.2,180,70,20,2.2,21.1,50,752,3749000,489700,1254,2856540000
23,槽180x70x20x2.5,180,70,20,2.5,21.1,50,848,4202000,544200,1710,3193430000
24,槽180x70x20x3.0,180,70,20,3,21.1,50,983,4730880,609240,2950,3832120000
25,槽200x65x20x2.0,200,65,20,2,18.1,44,673,3850560,353370,900,2693490000
26,槽200x65x20x2.5,200,65,20,2.5,18.1,44,842,4813200,441720,1760,3366860000
27,槽200x65x20x3.0,200,65,20,3,18.1,44,1010,5775840,530060,3030,4040230000
28,槽200x70x20x2.0,200,70,20,2,20,44,727,4400400,467100,920,3185500000
29,槽200x70x20x2.2,200,70,20,2.2,20,48,796,4798700,506400,1200,3548520000
30,槽200x70x20x2.5,200,70,20,2.5,20,48,898,5382100,562700,1800,3981870000
31,槽200x70x20x3.0,200,70,20,3,20,48,1037,6027840,629540,3120,4778240000
32,槽220x70x20x2.5,220,70,20,2.5,19,46,910,6263600,539850,1900,4877150000
33,槽220x70x20x3.0,220,70,20,3,19,46,1092,7516320,647820,3280,5852580000
34,槽220x70x20x3.2,220,70,20,3.2,19,46,1165,8017410,691000,3980,6242670000
35,槽220x75x20x2.0,220,75,20,2,20.8,51,787,5744500,568800,1290,4109230000
36,槽220x75x20x2.2,220,75,20,2.2,20.8,51,862,6268500,617100,1760,4609302000
37,槽220x75x20x2.5,220,75,20,2.5,20.7,51,973,7037600,686600,1950,5707180000
38,槽220x75x20x3.0,220,75,20,3,20.7,51,1119,7621240,761170,3360,6848620000
39,槽220x75x20x3.2,220,75,20,3.2,20.7,51,1194,8342660,811910,4080,7305200000
40,槽250x70x20x2.5,250,70,20,2.5,17.6,44,978,8441830,560030,2040,6427600000
41,槽250x70x20x3.0,250,70,20,3,17.6,44,1174,10130190,672040,3530,7713120000
42,槽250x70x20x3.2,250,70,20,3.2,17.6,44,1252,10805540,716840,4280,8227320000
43,槽250x80x20x2.5,250,80,20,2.5,21,51,1024,9098080,766550,2140,8721010000
44,槽250x80x20x3.0,250,80,20,3,21,51,1229,10917690,919850,3690,10465300000
各行数字含义（以最后一行为例）：
槽250x80x20x3.0：
截面高度H=250mm；
截面宽度B=80mm；
卷边宽度C=20mm；
厚度t=3mm；
Y轴距离z0=21mm；
偏心距e=51mm；
截面面积A=1229mm2；
惯性矩Ix=10917690mm4；
惯性矩Iy=919850mm4；
截面模量Wx=87342mm3；
截面模量Wy=15591mm3；
回转半径ix=94.3mm；
回转半径iy=27.4mm；
抗扭惯性矩It=3690mm4；
扇形惯性矩Iw=10465300000mm4；
单位重量=A*7850/1000000=9.648Kg/m
